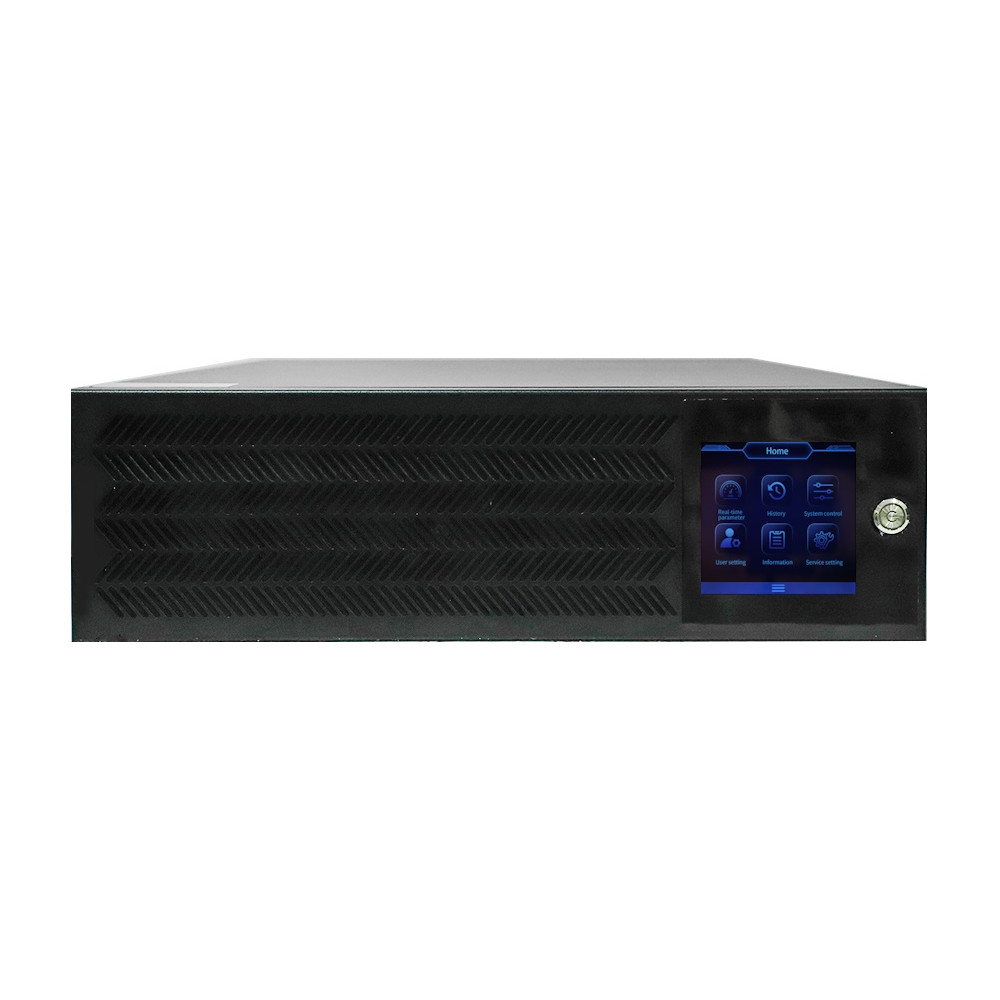

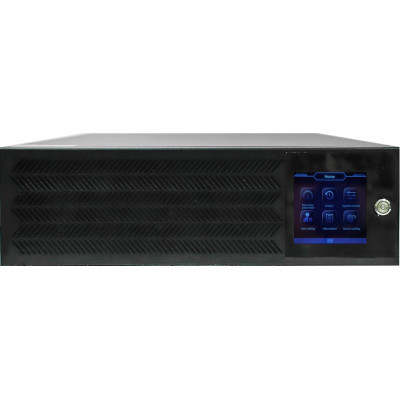

UPS COVER PS 20K - 3,7 min.

I accept the Terms of Service of b2b-eur.comex.com.pl and I consent to the processing of my personal data provided to COMEX Spółka Akcyjna under the conditions described in the Privacy Policy. I declare that I am aware of the purposes of processing personal data and my rights.

The consents granted to COMEX Spółka Akcyjna for the above-mentioned marketing communications can be withdrawn at any time by emailing info@comex.com.pl without affecting the legality of the processing that was performed on the basis of consent before its withdrawal. The administrator of the personal data provided in the form is COMEX Spółka Akcyjna, Jesienna 21, 80-298 Gdańsk, under the conditions described in the Privacy Policy.

COVER CORE PS 20K 20kVA/kW UPS with two EBM PS battery modules (20x9Ah).

UPS can be configured as 3/3; 3/1; 1/1 and 1/3.

Total number of installed batteries 40 x 9Ah.

Height of the set 9U.

MPN: 11-Z-PS 20K-240009

This pack contains

UPS COVER PS 20K

x 1

Battery module PS EBM20

x 2

Battery 7STARS SHR250

x 40

Description
Product Details

AUTONOMY TIME

PS 20K	Load	Autonomy time [min]
40 x 9Ah	100%	3.7
	75%	6.1
	50%	11.1
	25%	29

TECHNICAL SPECIFICATIONS

Model	PS 20K
Power factor	20kVA / 20kW
Phases In/Out	3:3
Design	Rack/Tower
Input
Nominal voltage	220 / 230 / 240 VAC \| 380 / 400 / 415 Vac
Voltage range	100 ÷ 160 VAC @ load 50% - 100%, 160 ÷ 300 VAC @ load 100% 174 ÷ 278 VAC @ load 50% - 100%, 278 ÷ 522 VAC @ load 100%
Nominal frequency	50 / 60Hz
Frequency range	45 ÷ 65 Hz
THDi	<3%
Input power factor	≥0,99
Output
Nominal voltage	220 / 230 / 240 VAC \| 380 / 400 / 415 Vac
Power factor	1,0
Voltage regulation statis/dynamic	±1% / ±3%
Nominal frequency	50 / 60 ± 0,1 Hz
Overload caability	105% no limit, 125% - 10 min., 150% - 30 s., >150% - 500 ms
Efficiency in OnLine mode	96%
Efficiency in ECO mode	98%
Crest factor	3:1
Switching time	0ms
Batteries
Cold start	yes
Type of batteries	VRLA, AGM, gel
Batteries range	32 - 40 pcs x 12V
Max charging curent	13A
Charging type	3 – 8 hours up to 90% capacity (configurable)
Charging cycle	According to DIN 41773 with automatic charging shutdown according to current and voltage criteria, with time control.
Dimensions and weights
Dimensions (S x G x W)	440 x 680 x 132 (3U)
Weight w/o batteries	32,0 kg
Signaling and communication ports
Operating status indicator	LCD + audible alarm
Communication	USB, RS232, RS485, Dry in/out, EMBS, EPO, slot SNMP
Environmental conditions
Noise level	<65 dB @ load 100%
Operating temperature for UPS	0°C ÷ 40°C
Recommended operating temperature	15 °C ÷ 25 °C
Storage temperature	-20°C ÷ 40°C
Humidity	0 ÷ 95% (non-condensing)
Cerifications
Interference immunity	EN 62040-2:2018, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019
Safety	EN 62040-1:2019, EN 62040-1-2:2003, 62040-3:2001, CE
Optional accesories
- SNMP card
- AS 400 mini (dry-contact) card
- Environmental sensor (EMD)
- Remote Emergency Power Off button
- External maintenance bypass
- Remote LCD panel

Due to constant product improvement all specifications are subject to change without notice.

Apparent power [kVA]: 20
Active power [kW]: 20
Technology:: VFI-SS-111 (OnLine DoubleConversion)
Phase In/Out:: 1:1,3:1,3:3,1:3
Output PF:: 1
Battery string:: +/- (16/17/18/19/20)
Backup time under 100% load: 4 - 10 minutes
