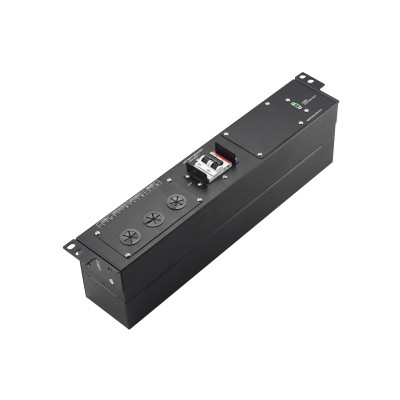

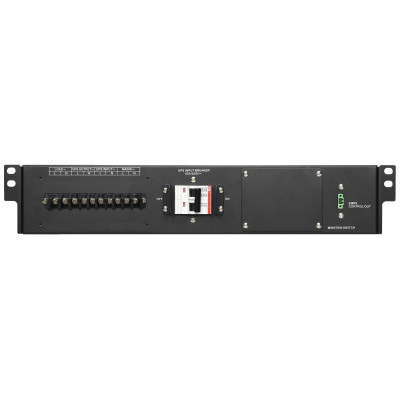

Bypass rack MBS10 - CORE 6-10K

Bypass rack MBS10 - CORE 6-10K

External uninterruptible service bypass for rack mounting (2U), designed for 1-phase power supplies up to 10kVA.

13-CORE-MBS-10

CHARACTERISTICS

  • CORE MBS is a rack-mounted uninterruptible external service bypass for use with CORE and FLIX series UPS.
  • MBS10 can work with COVER 1-phase UPS up to 12kVA.
  • MBS as Maintenance Bypass -
  • allows UPS servicing and physical disconnection without shutting down the powered loads.
  • Small dimensions MBS made in 19'' rack standard with 2U space occupancy.

SPECIFICATIONS

Model CORE MBS10
Power 10kVA / 10kW
Phase configuration IN : OUT 1:1
Input
Supply voltage  220 / 230 / 240 Vac
Frequency 50 / 60Hz
Overload resistance Tak
Input overload protection 63 A
I/O connection
Power input connector Connector terminals: L+N+G /10mm2
UPS input connector Connector terminals: L+N /10mm2
UPS output connector Connector terminals: L+N /10mm2
Output connectors for load Connector terminals: L+N+G /10mm2
Nominal frequency 50 / 60 Hz
Overload resistance Tak
Dimensions and weight
Dimensiona (D x G x H) 438mm x 158mm x 86mm (1U)
Weight 3,4 kg
Signaling and communication ports
Signaling bypass activation Contact connector (for UPS inverter shutdown)
Environmental conditions
Permissible operating temperature 0°C ÷ 45°C
Storage temperature -20°C ÷ 60°C
Humidity 0 ÷ 95% (no condensation)

Due to continuous product improvement, we reserve the right to change parameters without prior notice.

Apparent power [kVA]
10
Type of accesory
Bypass
