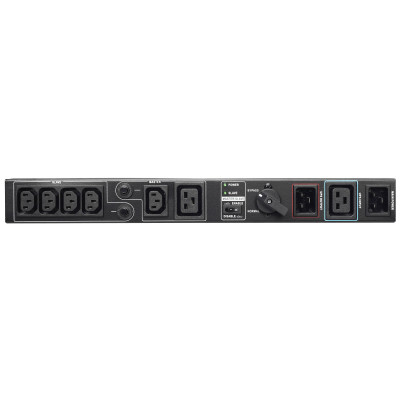

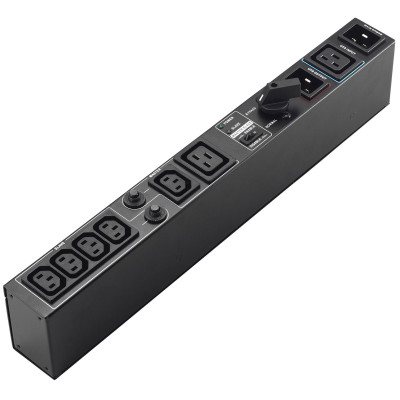

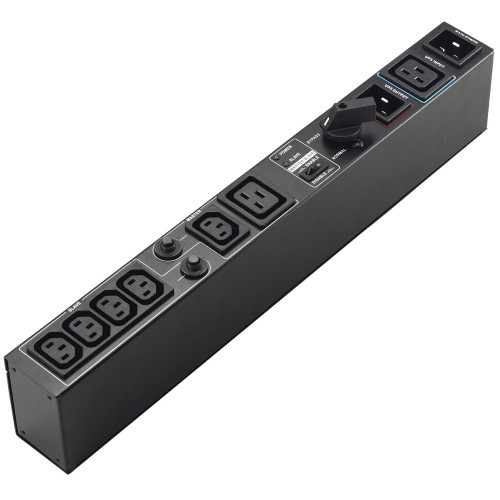

External uninterruptible service bypass for rack mounting (2U), designed for 1-phase power supplies up to 3kVA.

13-CORE-MBS-10

Essential accessories

Accesories

CHARACTERISTICS

  • CORE MBS is a rack-mounted uninterruptible external service bypass for use with CORE and Winter series UPS.
  • MBS3 can work with COVER 1-phase UPS up to 3kVA.
  • MBS as Maintenance Bypass -
  • allows UPS servicing and physical disconnection without shutting down the powered loads.
  • MBS3 has two groups of output sockets MASTER/SLAVE.  The Slave group can be configured so that when the sum of the Master group's loads is very small (<20W) the loads supplied from the Slave group will be disconnected. This makes it possible to disconnect peripherals working with the PC when the PC is off or in standby mode.
  • Small dimensions MBS made in 19'' rack standard with 1U or 2U space occupancy.

SPECIFICATIONS

Model CORE MBS3
Power 3kVA / 3kW
Phase configuration IN : OUT 1:1
Input
Supply voltage  220 / 230 / 240 Vac
Frequency 50 / 60Hz
Overload resistance Tak
Input overload protection 16 A
I/O connection
Power input connector IEC 320-C20 x1
UPS input connector IEC 320-C20 x1
UPS output connector IEC 320-C19 x1%
Output connectors for load

Master: IEC 320-C13 x1 + IEC 320-C19 x1

Slave: IEC 320-C13 x4
Nominal frequency 50 / 60 Hz
Overload resistance Tak
Dimensions and weight
Dimensiona (D x G x H) 438mm x 80mm x 50mm (1U)
Weight 1,5 kg
Signaling and communication ports
Signaling bypass activation Contact connector (for UPS inverter shutdown)
Environmental conditions
Permissible operating temperature 0°C ÷ 45°C
Storage temperature -20°C ÷ 60°C
Humidity 0 ÷ 95% (no condensation)
Optional equipment

- C19/C20 power/receiving cables (16A)
- C13/C14 (10A) receiving cables

Due to continuous product improvement, we reserve the right to change parameters without prior notice.

Apparent power [kVA]
3
Type of accesory
Bypass
