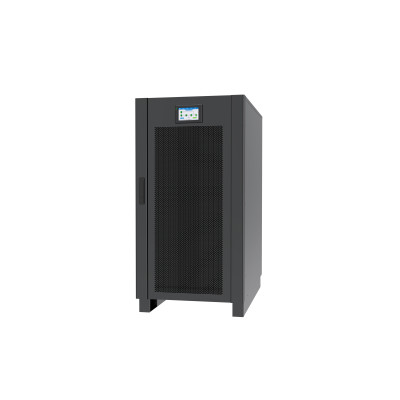

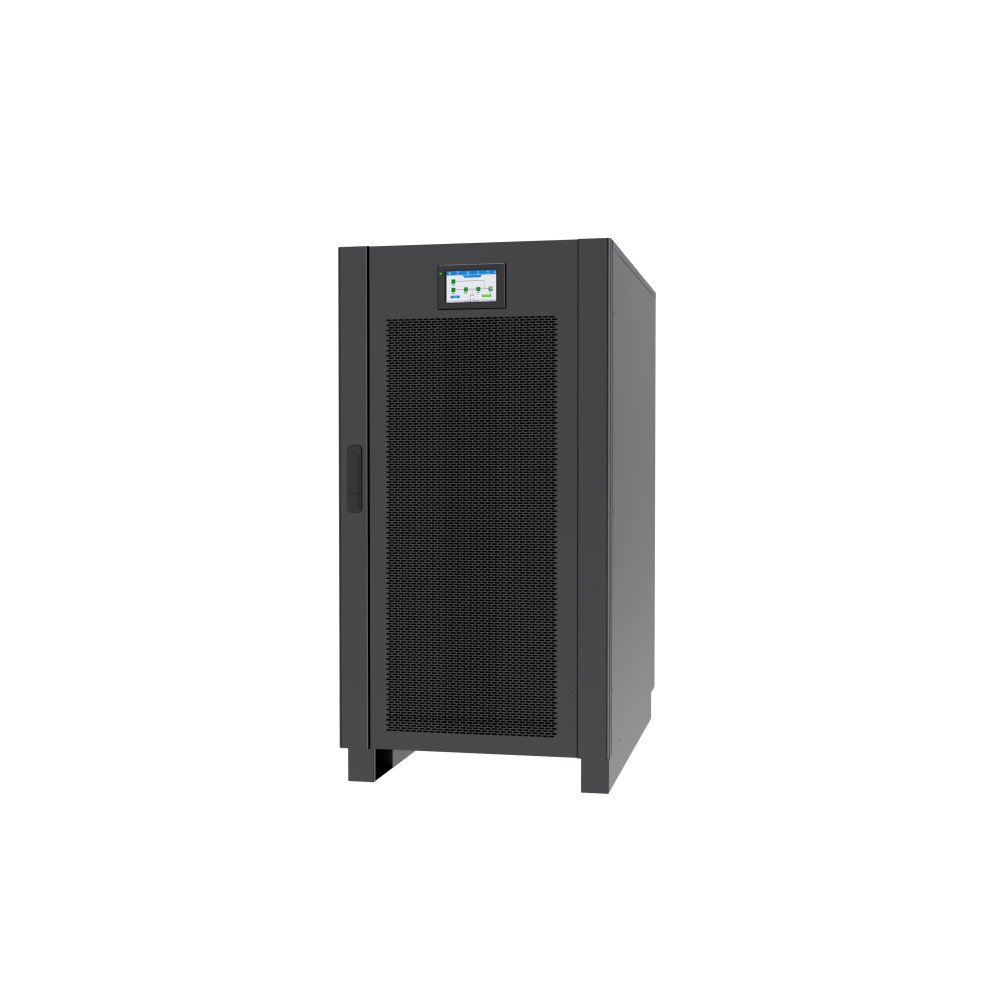

UPS INSERT 40K - 25,6 min.

• True OnLine technology True On-Line Double Conversion technology ensures excellent output voltage performance regardless of power interference and the type of loads being powered.
• IGBT rectifier The most advanced technology providing very low THDi and high power factor.
• Automatic bypass Uninterruptible power supply provides uninterrupted power to consumers in critical situations like overheating or failure.
• Service bypass allows servicing of equipment without shutting down the powered loads. Separate power supply of the Bypass track gives the possibility to provide a backup power source for the consumers even in case of equipment failure or UPS protection tripping in the main track.
• Communication interfaces:
• - USB, RS232, RS485 for monitoring and managing the operation of the power supply and receivers,
• - DryContact relay contacts for interfacing with BMS systems
• - SNMP integration with NMS-type network management systems
• - Remote Emergency Power Off (REPO) connector. (REPO) for providing remote disconnection of power to consumers in the event of a fire,
• 5,0" LCD color touchscreen control and monitoring panel simplifies UPS operation, allows diagnostics of parameters and operating mode of the power supply, and enables event logging.
• The highly efficient charging system makes the UPS capable of quickly charging battery banks with very large capacities, for long autonomous operation times.
• High efficiency (>96%) reduces the emitted heat, making the eventual cooling of the premises simpler and the UPS much cheaper to operate.
• ECO-Mode allows a significant reduction in the cost of operation of the device and virtually eliminates the emission of heat.
• Internal batteries ensure the unit's small size with using basic battery packs. The batteries do not require additional space for installation.
• Adjustable battery quantity allows to fine tune the amount of the batteries for the required backup time.

• Conformal coating protecting the UPS boards insulates the electronic components from adverse environmental conditions like moisture and dust.
• Automatic diagnostics and digital control (32 bit DSP x2) guarantees full device performance, control of components and operating parameters without user intervention.
• High value of input power factor 0.99 limits the value of the current drawn by the device from the grid.
• Redundant fans ensure UPS operation even in case of failure 1 or 2 fans with limited output power.
• Highest output power factor value 1.0 allows the power supply to be loaded with full active power.
• Wide input voltage range in normal operation mode ensures stable operation of the device without the need for batteries, which significantly extends their life.
• Wide input frequency range in normal operation mode allows the power supply to be used freely in a network with unstable parameters and when powered by a generator set.
• Ease of use The ease of connection to the network and the simple switching on and off of the device does not require special qualifications from the user.
• Advanced battery management guarantees optimal charging and utilization of battery banks, increases battery life and reduces operating costs. Temperature compensation function of charging voltage.
• Excellent output voltage quality achieved through the use of a 3-level IGBT inverter, with the use of advanced PWM control technology makes it possible to deliver a voltage with stable parameters, regardless of energy disturbances and the type of powered devices.
• High overload capacity Ensures protection of the device and continuity of power supply in the presence of transient transients.
• Advanced software enabling the user to have full control over the device and the powered loads.
• Configurability of operating parameters nominal voltages, frequencies, preferred modes of operation, method of communication - greatly expands the range of possible applications.
• Redundant configurations:
• - Redundant parallel operation for increased reliability
• - Capacitive parallel operation for increased power
• - HotStandby work

304 Vac - 485 Vac for 100% load,

138Vac - 304 Vac linear for 40% - 100% load
