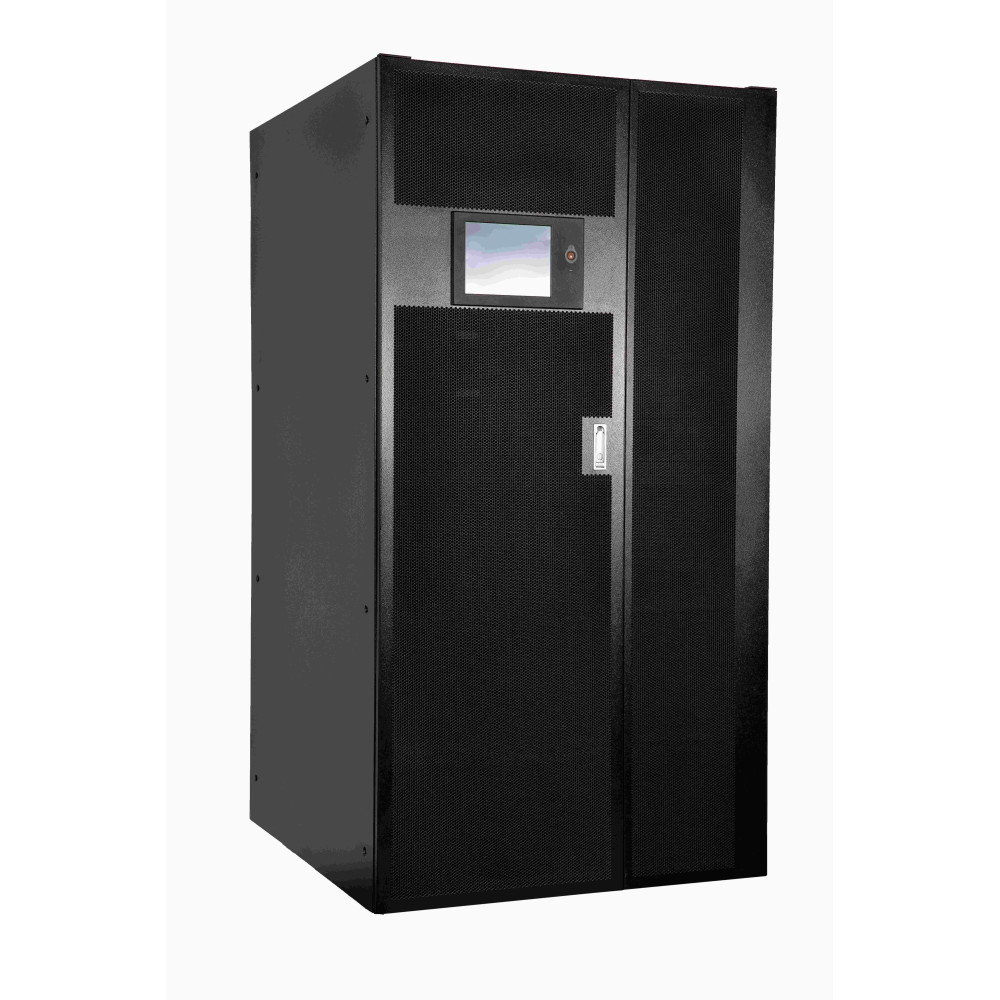

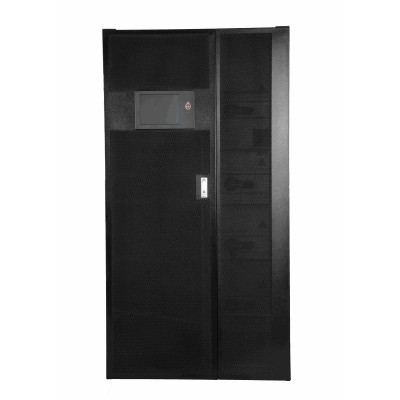

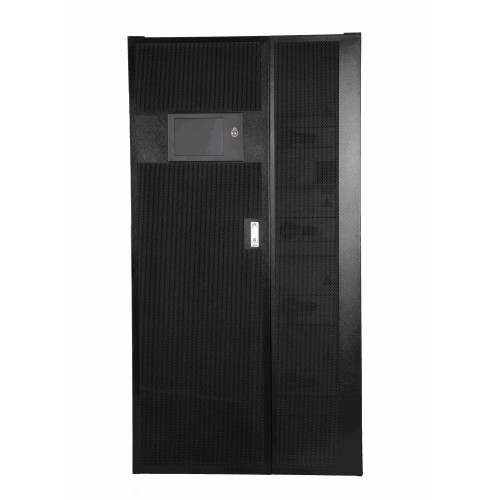

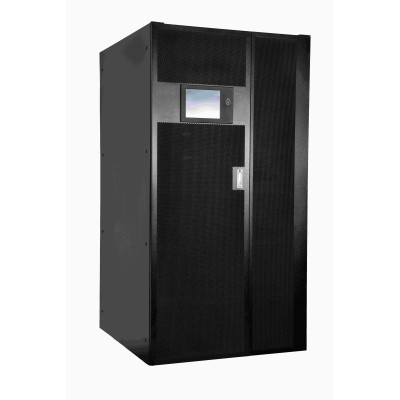

COVER Online Double-Conversion modular power supply, with 600kVA/600kW. Cabinet equipped with HotSwap power modules 50kW. 3:3 phase configuration.

11-MXS-OB-600

Essential accessories

Communication

Power module

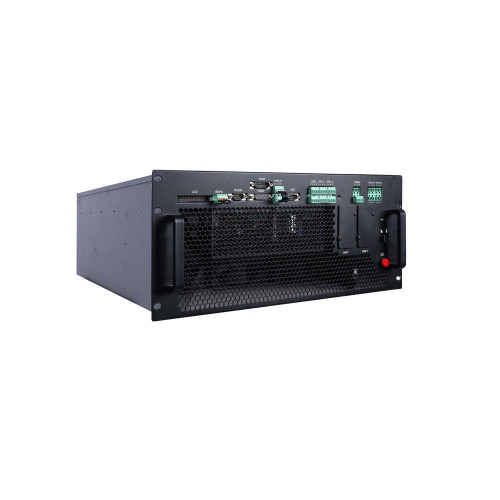

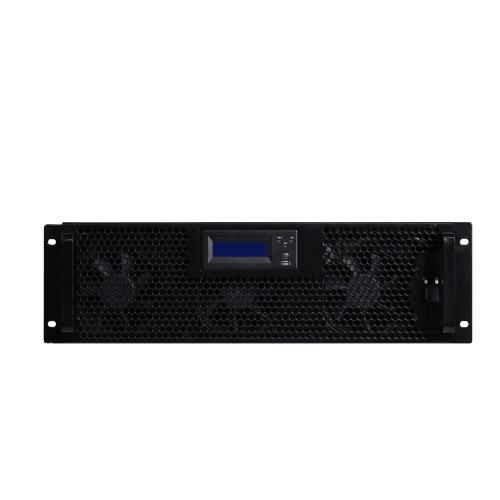

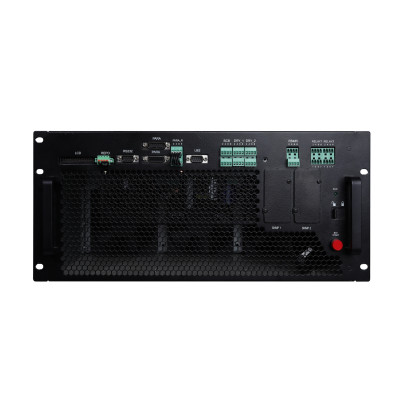

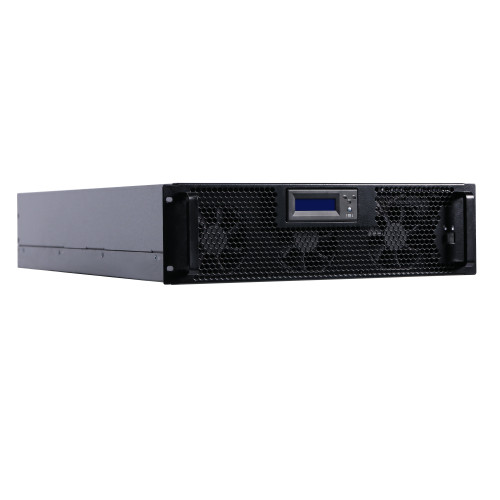

MAXSAFE PM50 power module

MAXSAFE PM50 power module

CHARACTERISTICS

  • True OnLine technology Double Conversion provides excellent output voltage performance regardless of power interference and the type of consumers being powered.
  • IGBT rectifier The most advanced technology providing very low THDi and a high input power factor of 0.99.
  • Modular design provides easy power scalability in the range of 50 - 300 kW, 50 - 400 kW, 50 – 500kW or 60 - 600kW at any time without interrupting system operation - "Hot Swap" replacement. The modular solution minimizes MTTR (Mean Time To Repair) and guarantees the ability to configure an N+X redundant system within a single chassis, thereby increasing the level of reliability of the power system.
  • Automatic bypass provides uninterrupted power to consumers in critical situations like overheating or failure.
  • Service bypass allows servicing of equipment without shutting down the powered loads.
  • Dual Input Lines Separate power supply of the Bypass track gives the possibility to provide a backup power source for the receivers even in case of equipment failure or UPS protection tripping in the main track.
  • Communication interfaces:
  • - RS232, RS485, MODBUS for reading and monitoring parameters, managing operation and configuring the UPS,
  • - DryContact relay contacts for interfacing with BMS systems
  • - SNMP integration with NMS-type network management systems
  • Remote Emergency Power Off (REPO) for providing remote disconnection of power supply to consumers in case of fire,
  • 10,4" LCD color touchscreen control and monitoring panel simplifies UPS operation, allows diagnostics of parameters and operating mode of the power supply, and enables event logging.
  • High efficiency of the device (>96,5%) reduces the emitted heat, so that the eventual cooling of the premises is simpler, and UPS operation is much cheaper.
  • ECO-Mode allows a significant reduction in the cost of operation of the device and virtually eliminates heat emission thanks to an efficiency of >99%.
  • Sleep Mode of operation allows power modules to be automatically switched off if the power of the supplied loads is very low, thus minimizing power losses.
  • Self Aging function allows the device to be tested with a full load, even without connected receivers.
  • Automatic diagnostics and digital control (32 bit DSP x2) guarantees full efficiency of the device, control of components and operating parameters without user intervention.
  • Highest output power factor value of 1.0 allows the power supply to be loaded with full active power.
  • Wide input voltage range in normal operation mode ensures stable operation of the device without the need for batteries, which significantly extends their life.
  • Wide input frequency range in normal operation mode allows the power supply to be used freely in a network with unstable parameters and when powered by a generator set.
  • Advanced battery management guarantees optimal charging and utilization of battery banks, increases battery life and reduces operating costs. Temperature compensation function of charging voltage.
  • Excellent output voltage quality achieved through the use of a 3-level IGBT inverter, with the use of advanced PWM control technology makes it possible to deliver a voltage with stable parameters, regardless of energy disturbances and the type of powered devices.
  • High overload capacity Ensures protection of the device and continuity of power supply in the presence of transient transients.
  • Advanced software enabling the user to have full control over the device and the powered loads.
  • Configurability of operating parameters nominal voltages, frequencies, preferred modes of operation, method of communication - greatly expands the range of possible applications.
  • Redundant configurations:
  • - Redundant parallel operation for increased reliability
  • - Capacitive parallel operation for increased power
  • - HotStandby work
  • - Dual BUS operation (using LBS)

TECHNICAL SPECIFICATIONS

Model MAXSAFE 605
Power 600kVA / 600kW
Number of phases in:out 3:3
Construction Modular HotSwap
Input
Voltage 380 / 400 / 415 Vac
Voltage range 304 VAC - 478 VAC for 100% load
228 VAC - 304 VAC for load reduced lineary to 80%
Frequency 50 / 60Hz
Frequency range -20% do +20%
THDi <3%
Input PF ≥0,99
Output
Total modules quantity 12 x 50 kW
Redundant configuration 12+0
Voltage 380 / 400 / 415 Vac
PF 1,0
Voltage regulation static/dynamic ±1% / ±2%
Frequency 50 / 60 ± 0,01 %
Inverter overloads 105% - 110% - 60 min., 110% - 125% - 10 min., 125% - 150% - 1 min., >150% - 0.2 sec.
Odporność na przeciążenia bypass 110% - constant, 130% - 5 min., 150% - 1 min., >150% - 0.2 sec.
Bypass overload 300% nominal current for 200 ms
OnLine efficiency >96,5%
Eco Mode efficiency 99%
Crest factor 3:1
Switching time to battery 0ms
Batteries
Cold start Yes
Type of batteries VRLA, AGM, żel, Li-ion
Number of batteries in string

30 - 344 szt. x 12V reduced power of UPS

36 - 44 szt. x 12V for full power of UPS

Max charging current 156 A
Charging time 3 – 8 hours to 90% of load
Charging cycle According to DIN41773 with automatic charging shutdown according to current and voltage criteria, with time control, optional: temperature compensation of charging voltage
Weight and dimensions
UPS (W x D x H) 1000 x 1100 x 2000mm
UPS weight w/o power modules 372,5 kg
Power module weight 33,5 kg
Fully equipped UPS 792,5 kg
Signalling and communication
Status indicators Touchscreen LCD 10,4'', LED indicators, LCD panel on each power module, audible alarm
Communications RS232, RS485/MODBUS RTU, USB, REPO, LBS, parallel ports, DryContact
Environmental conditions
Noise level <70 dB at 100% load
Permissible operating temperature 0°C ÷ 40°C
Recommended operating temperature 15 °C ÷ 25 °C
Storage temperature -25°C ÷ 55°C
Humidity 0 ÷ 95% (no condensing)
Standards
EMC EN62040-1:2019, EN62040-3:2011
Safety EN62040-2:2018, CE
Optional equipment
- SNMP card
- Battery voltage compensation kit
- Environmental sensor (EMD)
- REPO button
- External maintenance bypass
- Parallel cables
- External LCD panel
- LBS (Load BUS Synchronization)

The publication provides parameters for standard models. Due to the continuous improvement of the product, we reserve the right to change the parameters without prior notice..

Apparent power [kVA]
600
Active power [kW]
600
Technology:
VFI-SS-111 (OnLine DoubleConversion)
Phase In/Out:
3:3
Output PF:
1
